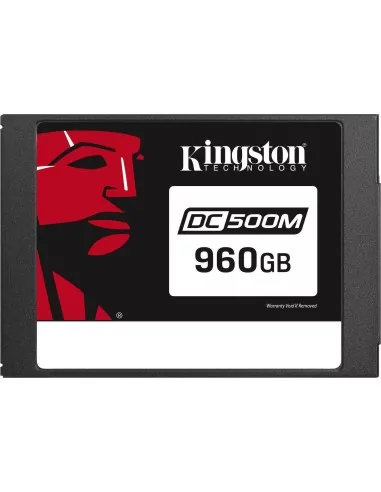

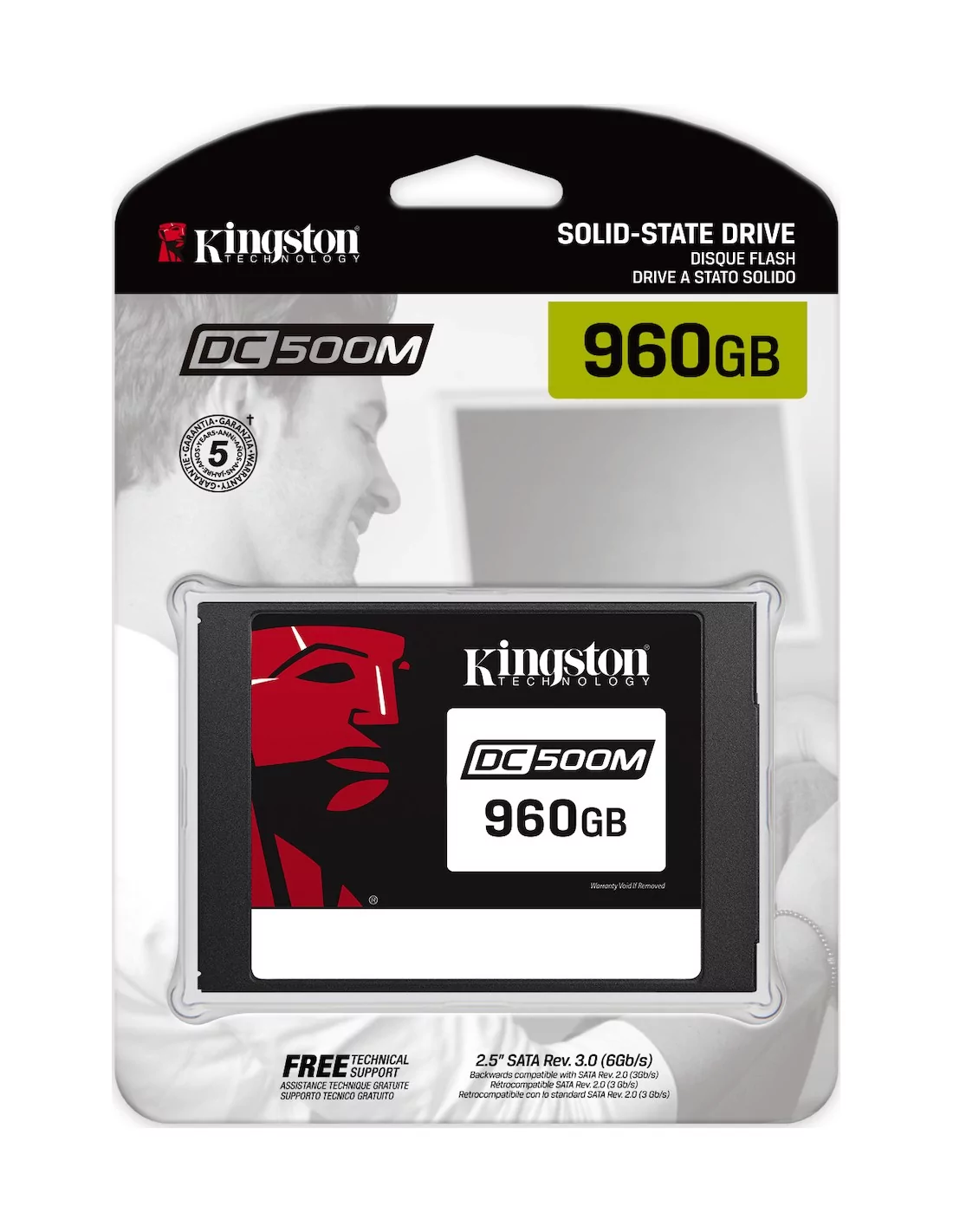

SSD Kingston 960GB DC500M Data Centre SEDC500M/960G

Form factor

2.5 inch

Interface

SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacity

960GB

NAND

3D TLC

Self-Encrypting Drive (SED)

AES 256-bit Encryption

Sequential read/write:

555MBs/520MBs

Steady-state 4k random read/write:

960GB – 98,000/70,000 IOPS

Quality of service (latency)²,³,⁴

- TYP read/write: <500 µs / <2 ms

Hot-plug capable

Static and dynamic wear levelling

Enterprise SMART tools

Reliability tracking, usage statistics, life remaining, wear levelling, temperature

Power loss protection

Tantalum capacitors

Endurance

960GB – 2278TBW⁶ (1.3 DWPD)

Power consumption

Idle: 1.3W
Average read: 1.45W
Average write: 4.5W
Max read: 1.65W
Max write: 7.5W

Storage temperature

-40°C ~ 85°C

Operating temperature

0°C ~ 70°C

Dimensions

69.9mm x 100mm x 7mm

Weight

92.34g

Vibration operating

2.17G Peak (7–800Hz)

Vibration non-operating

20G Peak (10–2000Hz)

MTBF

2 million hours

Warranty/support⁵

Limited 5-year warranty with free technical support
