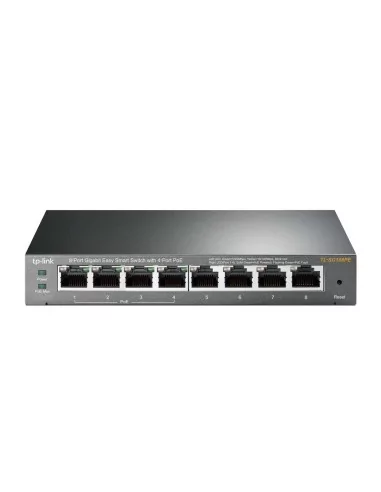

    Switch Tp-Link TL-SG108PE 8ports Gigabit Easy Smart with 4-Port PoE



    Το TL-SG108PE είναι ένας έξυπνος Gigabit Easy Smart Switch με 4 θύρες PoE, αντιπροσωπεύει μια ισχυρή αναβάθμιση από έναν μη διαχειριζόμενο διακόπτη. Έχει σχεδιαστεί ειδικά για μικρές επιχειρήσεις που απαιτούν απλή διαχείριση δικτύου και λειτουργία PoE. Το TL-SG108PE μπορεί να συνδέσει και να ενεργοποιήσει έως και τέσσερις συσκευές PoE, όπως ασύρματα σημεία πρόσβασης (AP), κάμερες IP και τηλέφωνα IP.

    HARDWARE FEATURES

    Standards and Protocols

    IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

    Interface

    8 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity

    Fanless

    Power Supply

    External Power Adapter(Output: 48VDC / 1.25A)

    Power Consumption

    Maximum (PoE on): 65.2W (220V/50Hz)
    Maximum (PoE off): 5.2W (220V/50Hz)

    PoE+ Ports(RJ45)

    PoE Ports (RJ45)

    Standard: 802.3 af compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 55W

    Dimensions ( W x D x H )

    6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

    Max Power Consumption

    5.15W (220V/50Hz with no PD connected)
    65.18W (220V/50Hz with 55W PD connected)

    Max Heat Dissipation

    17.57 BTU/h (with no PD connected)
    222.39 BTU/h (with 55W PD connected)

    PERFORMANCE

    Switching Capacity

    16Gbps

    Packet Forwarding Rate

    11.9Mpps

    MAC Address Table

    4K

    Packet Buffer Memory

    1.5Mb

    Jumbo Frame

    15KB

    SOFTWARE FEATURES

    Quality of Service

    Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control

    L2 Features

    IGMP Snooping V1/V2/V3
    Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention

    VLAN

    Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN

    Management

    Web-based GUI
    Easy Smart Configuration Utility

    Transmission Method

    Store-And-Forward
