HARDWARE FEATURES | |
Interface | 8 10/100Mbps RJ45 Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | No |
External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
PoE Ports (RJ45) | Standard: 802.3 af compliant |
Backbound Bandwidth | 1.6Gbps |
Mac Address Table | 2K |
Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
Max Power Consumption | 2.66(220/50Hz. no PD connected) |
Max Heat Dissipation | 9.08BTU/h(no PD connected) |
SOFTWARE FEATURES | |
Transmission Method | Store-And-Forward |
Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
OTHERS | |
Certification | FCC, CE, RoHS |

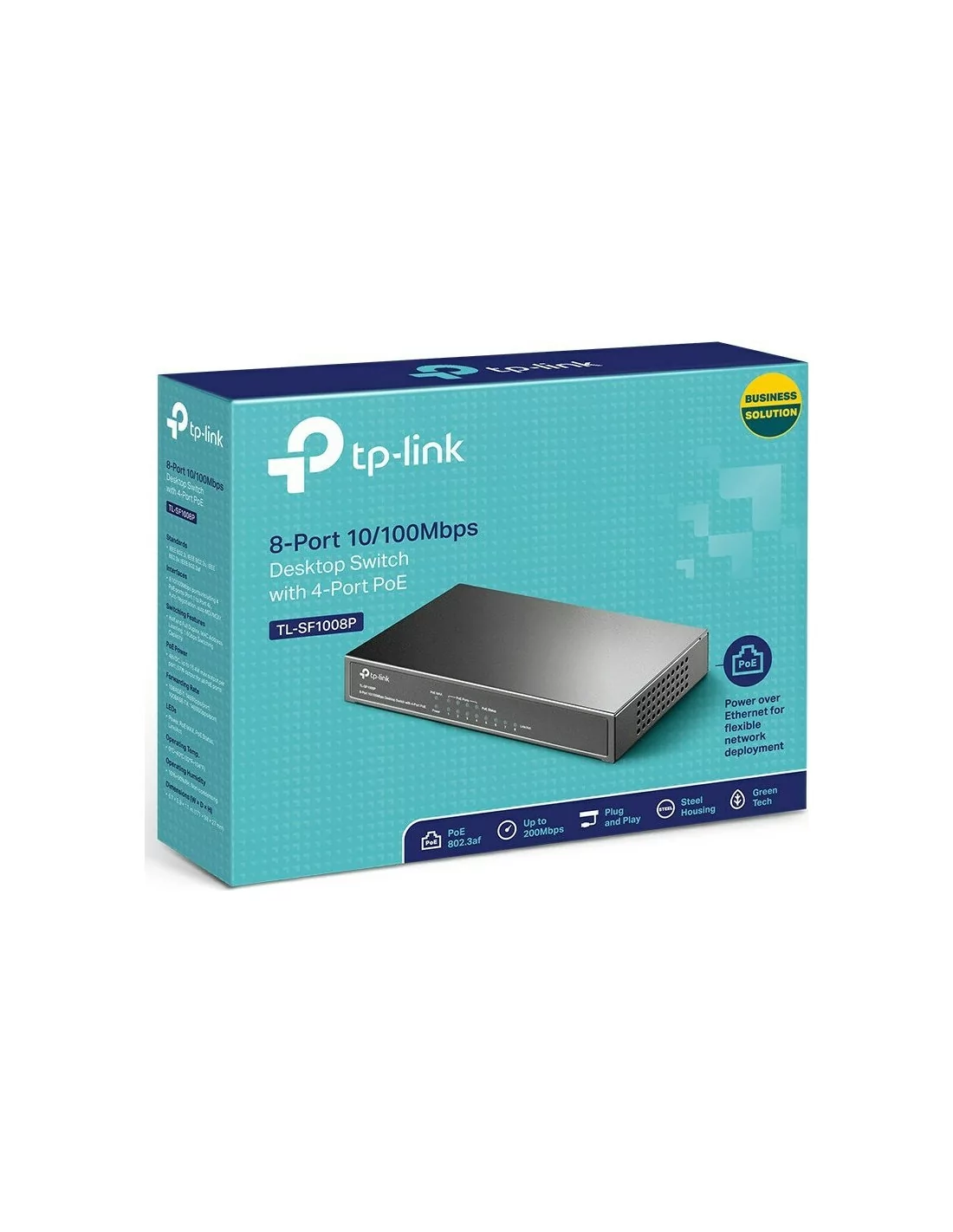

Package Contents | TL-SF1008P, Power Adapter, User Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
